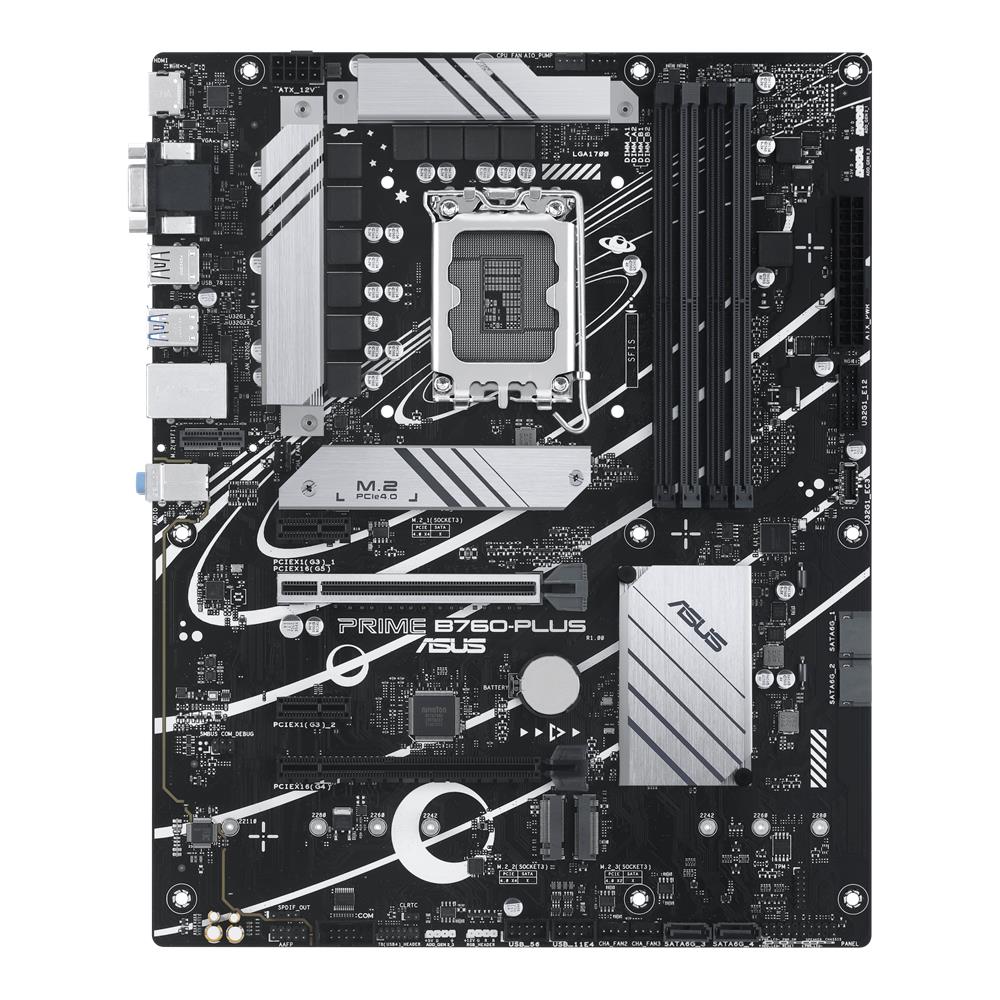

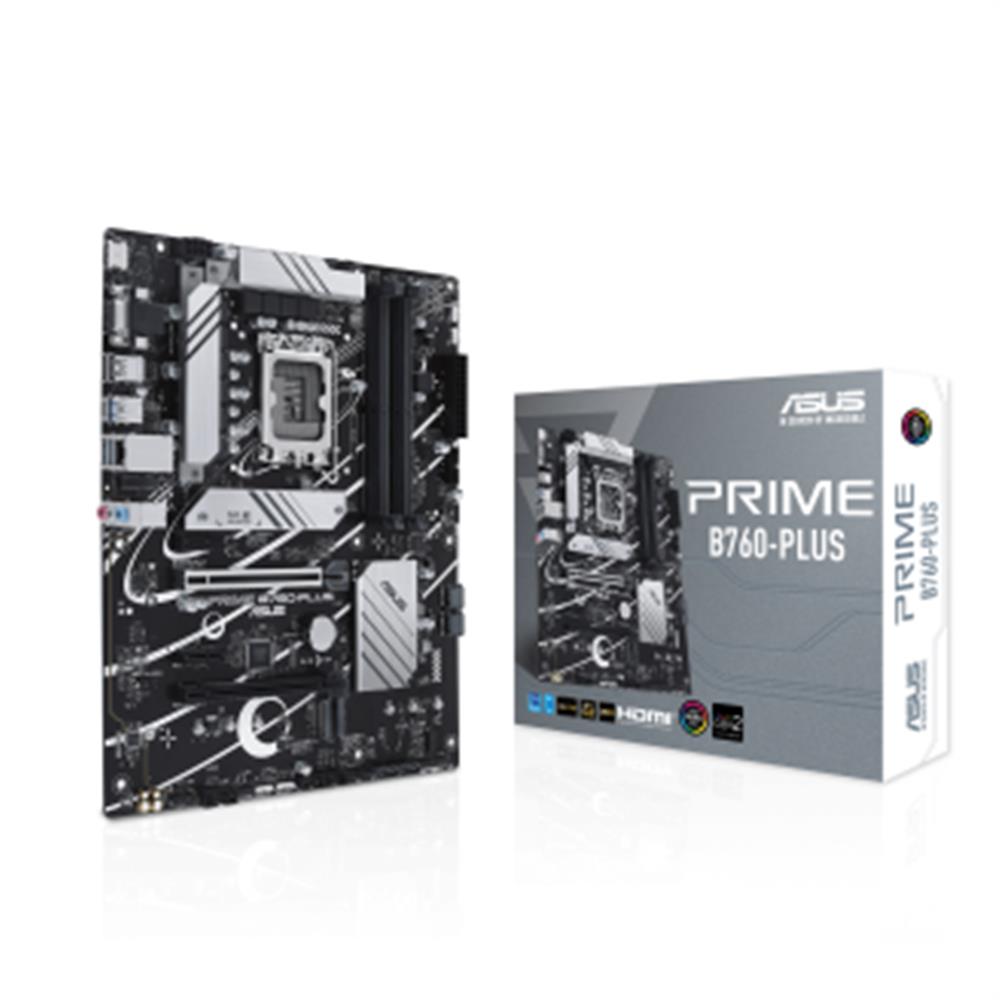

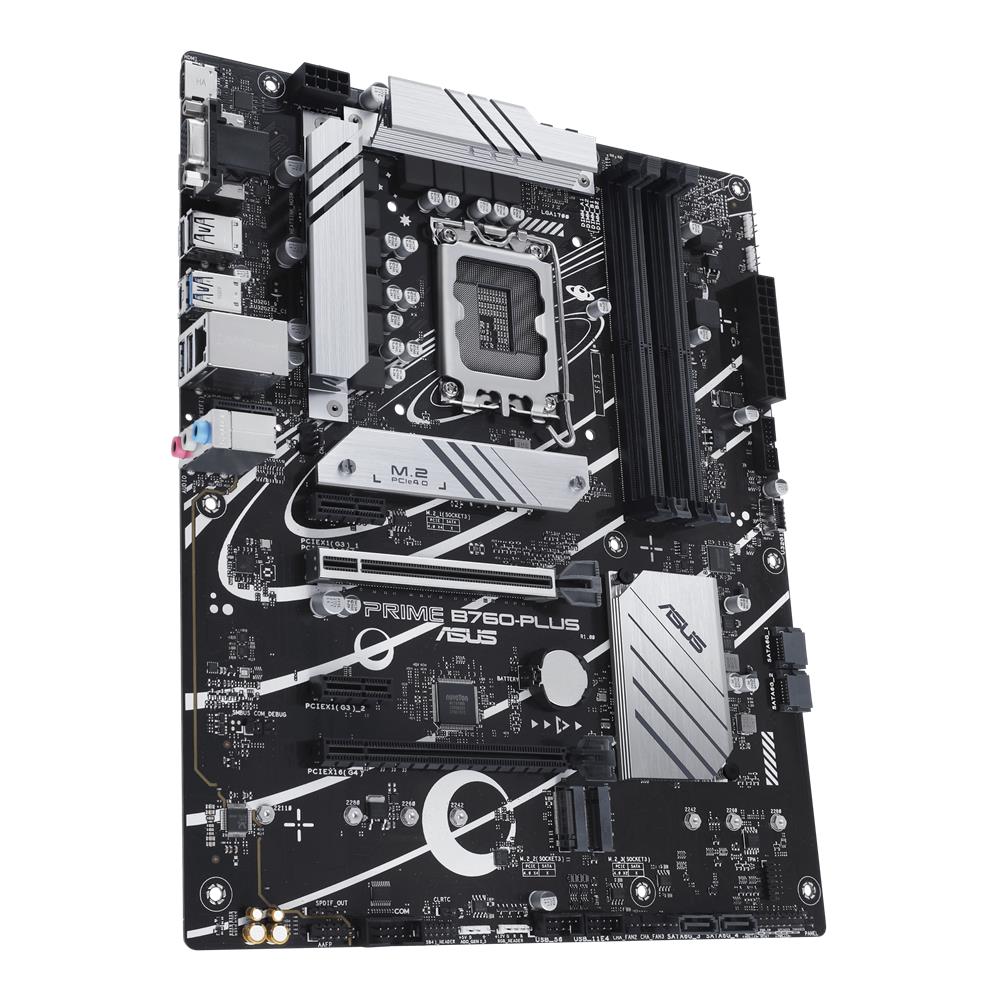

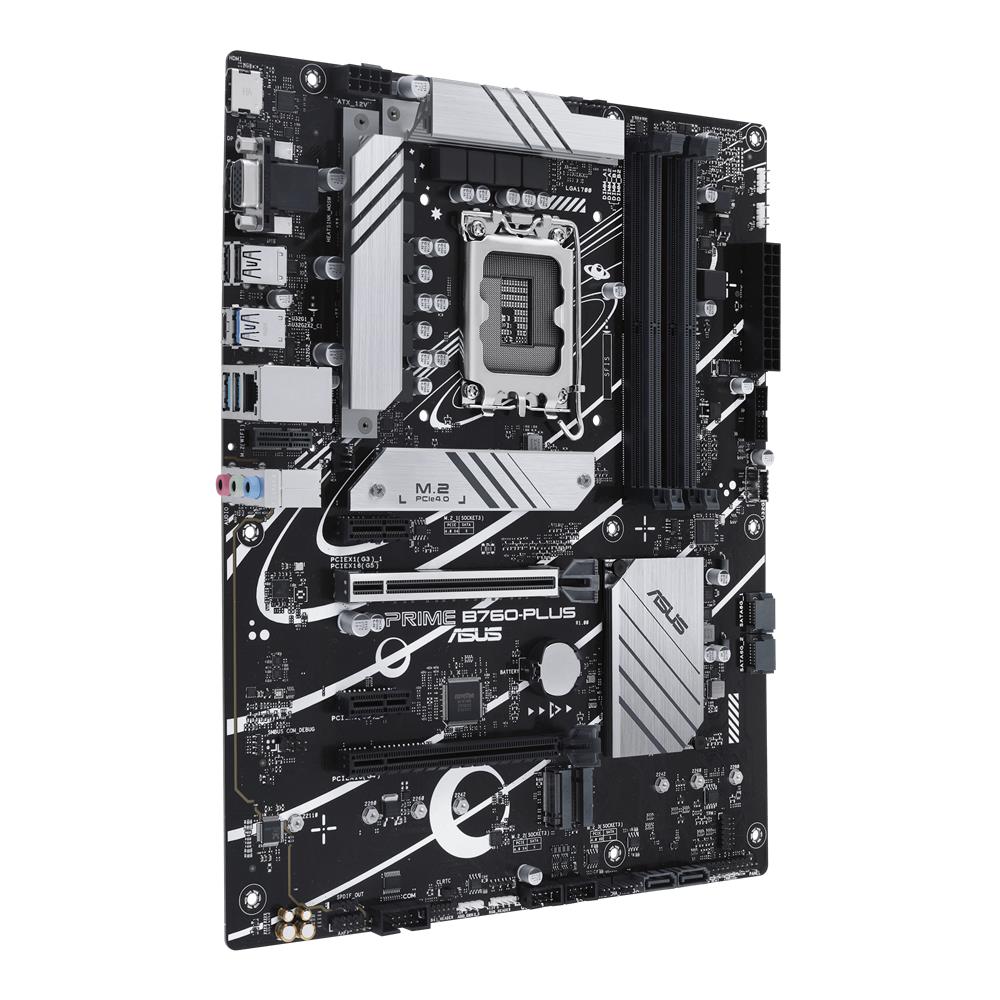

ASUS PRIME B760-PLUS Gaming Mainboard Sockel Intel LGA 1700 (ATX, DDR5, PCIe 5.0, 3x PCIe 4.0 M.2)
- Intel® LGA 1700 Sockel: Bereit für die 13. und 12. Generation der Intel® Prozessoren
- Ultraschnelle Konnektivität: PCIe 5.0, drei PCIe 4.0 M.2, Realtek 2.5Gb LAN, USB 3.2 Gen 2×2 Type-C®, Front USB 3.2 Gen 1 Type-C®, USB4® Unterstützung
- Umfassende Kühlung: VRM-Kühlkörper, M.2-Kühlkörper, PCH-Kühlkörper, Hybridlüfter-Header und Fan Xpert 2+
- Exklusive Speichertechnologie: ASUS Enhanced Memory Profile II und ASUS OptiMem II
- Aura Sync RGB-Beleuchtung: Integrierte adressierbare Gen 2-Header und Aura RGB-Header für RGB-LED-Streifen, zur Synchronisation mit Aura-Sync-Hardware
Verfügbarkeit für Abholungen konnte nicht geladen werden
Estimated Shipping Widget will be displayed here! (with custom color)
Intel B760, ATX, DDR5 Speicher, PCIe 5.0, 3x PCIe 4.0 M.2, Thunderbolt 4, Aura Sync
-
ProdukttypMainboards
-
Artikelzustand
-
Serie
-
Mainboard Formfaktor
-
Prozessorfamilie
-
Prozessorsockel
-
Farbe
-
MaterialMetall, Kunststoff
-
Länge/Tiefe
-
Breite
-
Höhe
-
Gewicht760 g
-
Datenblatt
- Prozessor
- Prozessorhersteller: Intel
- Prozessorsockel: LGA 1700
- Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Maximale Anzahl an SMP-Prozessoren: 1
- Unterstützte Prozessorsteckplätze: LGA 1700
- Speicher
- Unterstützte Arbeitsspeicher: DDR5-SDRAM
- Anzahl der Speichersteckplätze: 4
- RAM-Speicher maximal: 192 GB
- Arbeitsspeicher Typ: DIMM
- Speicherkanäle: Zweikanalig
- Ohne ECC: Ja
- Unterstützte Arbeitsspeichergeschwindigkeit: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
- Unbuffered Speicher: Ja
- Gewicht und Abmessungen
- Höhe: 305 mm
- Breite: 244 mm
- Tiefe: 36 mm
- Netzwerk
- WLAN: Nein
- Eingebauter Ethernet-Anschluss: Ja
- Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, Schnelles Ethernet, Gigabit Ethernet
- Interne E/A-Anschlüsse
- Anzahl USB 2.0 Schnittstellen: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 2
- SATA III Anschlüsse: 4
- S/PDIF aus Stecker: Ja
- Front Panel Audiostecker: Ja
- Frontpanel-Stecker: Ja
- ATX Stromstecker (24-pol.): Ja
- CPU Ventilatorstecker: Ja
- Zahl der Chassisventilatorstecker: 3
- Anzahl Molex Anschlüsse 4pin: 1
- EPS Stromstecker (8-pin): Ja
- Zahl der COM Stecker: 1
- TPM-Verbinder: Ja
- Thunderbolt-Stiftleisten: 1
- 12-V-Stromanschluss: Ja
- RGB-LED-Stiftleiste: Ja

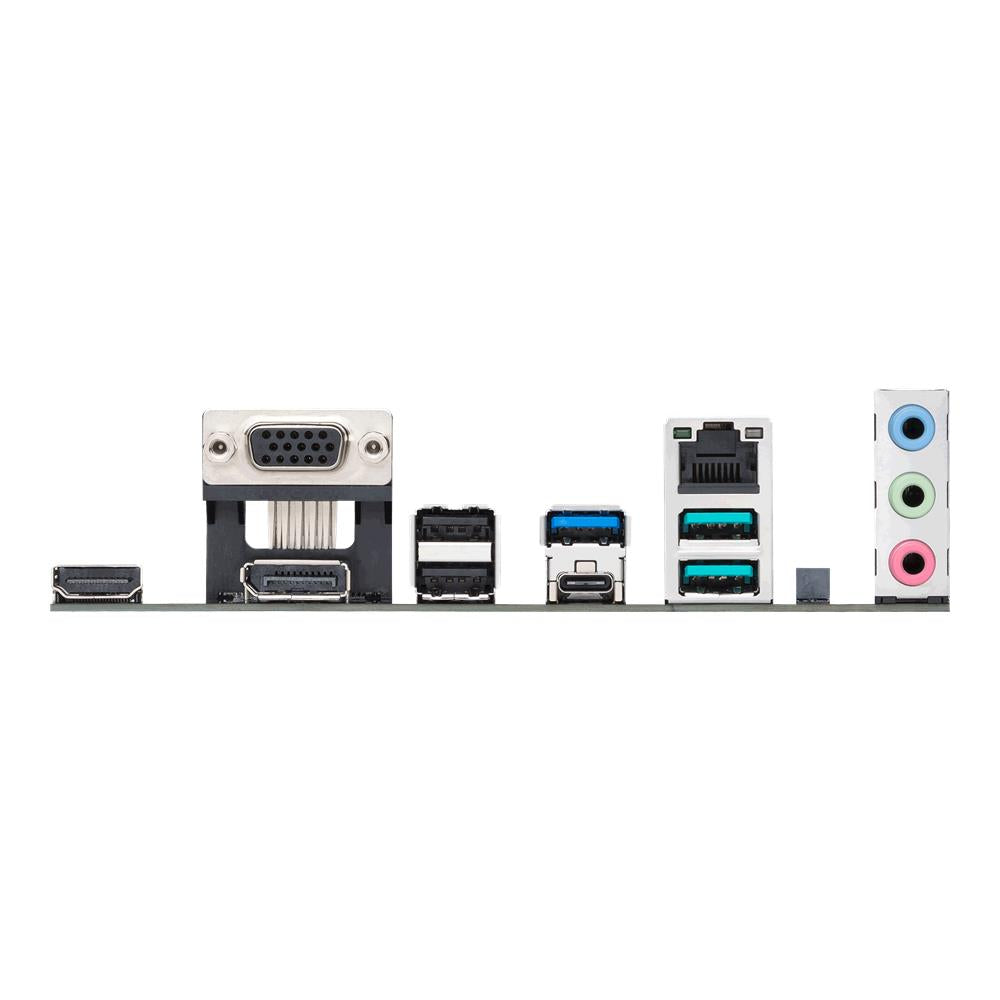

- E/A-Anschlüsse auf der Rückseite
- Anzahl USB 2.0 Anschlüsse: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 2
- Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
- Anzahl VGA (D-Sub) Anschlüsse: 1
- Anzahl HDMI-Anschlüsse: 1
- USB 3.2 Gen 2×2 Typ-C Anzahl Anschlüsse: 1
- HDMI-Version: 2.1
- Anzahl DisplayPort Anschlüsse: 1
- DisplayPorts-Version: 1.4
- Kopfhörerausgänge: 1
- Line-in: Ja
- Speicher-Controller
- Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III
- Unterstützte Speicherlaufwerke: HDD & SSD
- Maximale unterstützte Anzahl der HDD: 4
- Anzahl der unterstützten Speicherlaufwerke: 7
- RAID-Unterstützung: Ja
- RAID Level: 0, 1, 5, 10
- Erweiterungssteckplätze
- PCI-Express x1 (Gen 3.x)-Anschlüsse: 2
- PCI Express x16-Steckplätze (Gen 4.x): 1
- PCI Express x16-Steckplätze (Gen 5.x): 1
- Anzahl der M.2 (M)-Steckplätze: 3
- BIOS
- BIOS-Typ: UEFI AMI
- BIOS-Speichergröße: 128 Mbit
- Sonstige Funktionen
- Gewicht: 760 g
- Grafik
- Parallele Verarbeitungstechnologie: Nicht unterstützt
- Merkmale
- Komponente für: PC
- Motherboardformfaktor: ATX
- Motherboard Chipsatz Familie: Intel
- Motherboard Chipsatz: Intel B760
- Audio Kanäle: 7.1 Kanäle
- Kühlung: Passiv
- Energiequelle: ATX
- Unterstützt Windows-Betriebssysteme: Windows 10 x64, Windows 11
-
Lieferumfang
- Mainboard
- Kabel SATA
-
Artikel-Nr.1036186926
-
Hersteller-Nr.
-
Artikel-Nr.1036186926
-
Hersteller-Nr.
-
EAN4711387102985
